Insulation Baffle Spacer

Separates roof underlay from bulk insulation to create air flow. Ensure the longevity and effectiveness of your roof insulation with Masons Insul-Baffle.

MAINTAINS AIR GAP: Ensuring compliance and optimal performance.

SUPPORTS VENTILATION: Facilitates air movement in passive roof ventilation designs, contributing to a healthy roof space.

VERSATILE: For new or re-roofs, in timber or light steel-framed, with trusses or rafters, and long run or metal tile clad.

PURPOSE

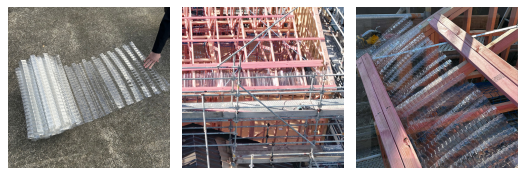

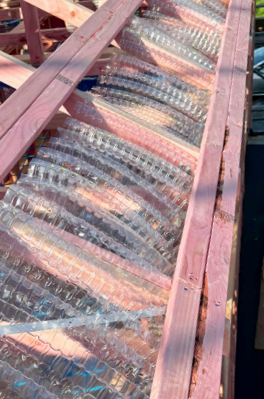

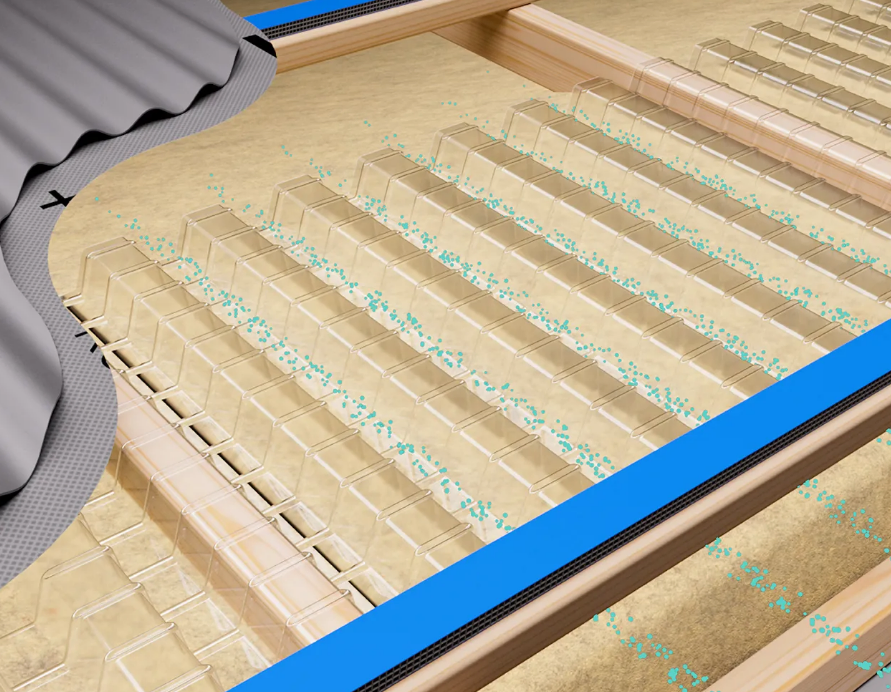

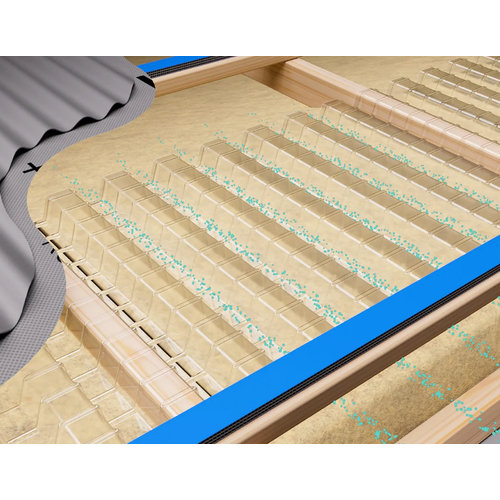

Masons Insul-Baffle is a crenelated, semi-rigid synthetic spacer designed to maintain a critical 25mm air gap between roof underlay and bulk insulation By preserving this gap, the Insul-Baffle supports proper air circulation in passive roof ventilation systems. Made from clear plastic it is installed typically over the rafters and truss top chords near the eaves where it is most likely that bulk thermal insulation may push up against the roof underlay.

LIMITATIONS

› Not suitable for Skillion roofs, which require different design solutions.

PRODUCT DETAILS

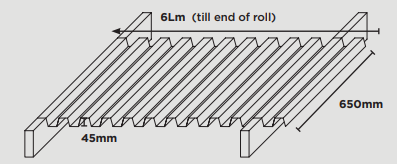

› Sold in a roll: 650mm wide by 6m long (2-rolls per carton)



Please contact the WPS Team to discss your requirements.
