TensorGrip H21 - 2 Part Spray Foam Insulation.

SPECIAL ORDER LINE:- STANDARD LEADTIME 3-5 WORKING DAYS

TensorGrip® H21 2 Part Spray Foam Insulation is a portable, self-contained insulating foam dispensing system. When used according to manufacturer’s directions, this system effectively air seals and insulates homes and buildings while enhancing R-value.

TensorGrip® H21 2 Part Spray Foam Insulation is low pressure, permanent and dry in 120 seconds. It uses disposable, pressurized chemical cylinders that dispense polyurethane spray foam, eliminating the need for external air compressors, pumping equipment or dry nitrogen. TensorGrip® H21 2 Part Spray Foam Insulation provides quick and easy foam application for repairs and renovations, new installations and production applications.

Advantages

• H21 Kits are available in 2 sizes. 12kg KIT, 45KG KIT.

• Foam dries in 120 seconds**at 25 degrees C.

• Bonds to a variety of materials including wood, masonry, metals, and drywall.

• Low-pressure, closed cell, medium density spray foam.

• Expands and cures quickly to air seal cavities, gaps, cracks, expansion joints, and other sources of air leakage.

• Airtight application improves heating and cooling efficiency — resulting in lower energy bills.

• Resists moisture that can lead to mould or mildew.

• Reduces vibration and sound transmission.

• Low-odour formulation.

• Low maintenance.

• Increases structural strength.

• Fire retardant added in formulation.

• Key Applications:-

• Walls & roofs

•  Sheds & warehouses

•  Metal frame house builds

•  Shipping containers

•  Caravan/Van fitout

• Commercial refrigeration repairs

•  Under slab/Underfloor and many more

Kits Available

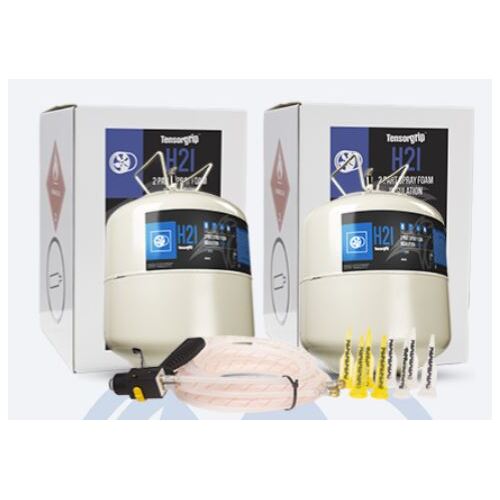

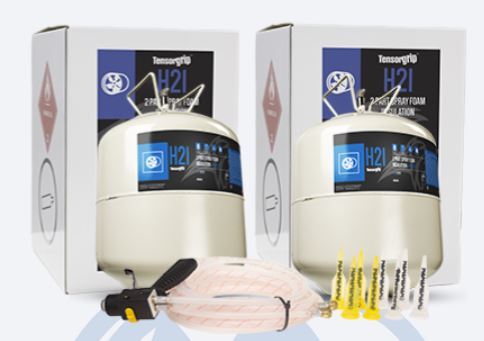

Supplied and sold as a complete kit containing 2 cannisters (Part A x 1, Part B x1). Two sizes available being a 12Kgs Kit  and a 45Kg Kit. Each kit contains the cannisters, gun, set of hoses and 8x nozzles (4x flat spray, 4x bead spray).

Nozzles are one-use item as the foam will harden in the nozzle (approx. 120 seconds as per above notes). You can use white spirits or acetone cleaner to clean the nozzles if wish to reuse them.

Coverage @25mm:- 12Kg Kit 17.7m2, 45Kgs Kit 56m2

Approx. 17.7m2 @25mm so Cubic area would be 0.4425m3

Approx. 56.64m2 @25mm so Cubic area would be 1.416 m3

R Values of H21 at different thicknesses

ASTM C518-2021 R Value:-50mm R1.35, 90mm R2.45

Directions for use

•  READ ALL DIRECTIONS AND SAFETY DATA ON BOX BEFORE USE. ALWAYS WEAR GLOVES, EYE PROTECTION AND WORK CLOTHES. USE DROP CLOTHS.
• Apply ONLY in temperatures between 16° – 32°C.
• Product is flammable during dispensing – turn off sources of ignition prior to use.

• PREPARATION: To promote adhesion, surface must be clean, dry, and free of all foreign material. All substrate surfaces should be above 16°C for at least 24 hours prior to application. Variance outside of the recommended temperature can drastically affect the adhesion and yield of your foam kit.
• CLEAN-UP: If wet foam contacts skin, clean immediately with a dry rag – do not use water – water accelerates curing. Cured foam must be removed mechanically from surfaces. Uncured foam can be cleaned from most surfaces with Foam Cleaner or acetone.

IMPORTANT Check temperatures before use! CANISTER TEMPERATURE 16° – 32°C SURFACE TEMPERATURE 16° – 32°C AIR TEMPERATURE 16° – 32°C

How to set up the H21 Spray Foam Insulation Kit

Please contact the WPS Team for MSDS & Data Sheets.
