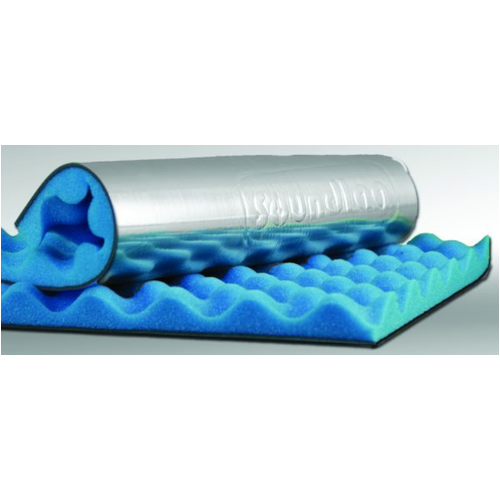

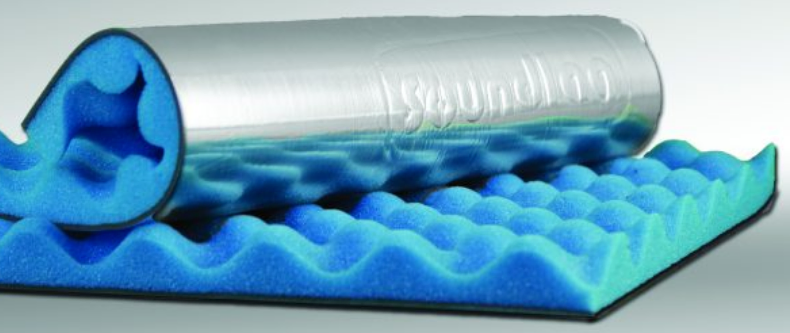

Soundlag© 4525C Acoustic Pipe Lagging

Soundlag® is a versatile high-performance composite acoustic lagging product, designed to effectively reduce noise from a variety of sources including pipes, valves, fan housings, and ductwork in commercial, industrial, and domestic buildings.

Soundlag® is the ultimate soundproofing solution for those seeking compliance with NCC (National Construction Code - formally Building Code of Australia) F5.6 requirements. With test results showing a significantly higher performance of up to 5 dB(A) compared to low-noise pipe products, Soundlag® is the clear choice for noise reduction.

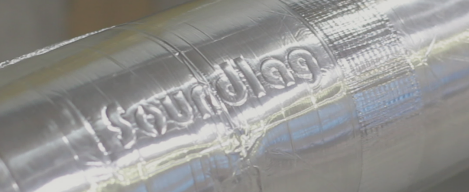

 The highly dense and flexible mass layer provides excellent sound reduction properties, whilst the decoupling layer breaks the vibration path between the substrate and the barrier, allowing the vinyl external wrap to remain flexible – optimising performance. The external foil facing offers a fire-resistant covering and an excellent surface to join adjacent sheets.

Features

  • Better performance - up to 5 dB(A) with Soundlag® 4525C compared to low noise pipe products without ceiling or areas with penetrations
  • Free from odour producing oils and bitumen
  • Contain no ozone depleting substances
  • Accredited to ISO 9001 Quality Control Standard
  • Tested to AS 1530.3 with excellent flame resistance
  • Broad operating temperature range
  • Reduces noise in hydraulic and waste pipes by up to
    25.2 dB(A) (4525C)
  • Varying range of weights and thicknesses
  • Choice of foam, polyester, fibreglass or glass wool
  • Can cut to size and simple to install

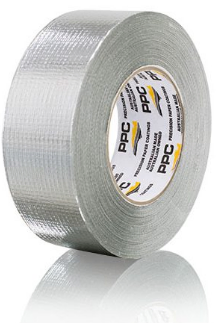

  • Easy to bond - matching Tape ALR or equivalent
  • Endorsed by leading acoustic consultants and engineers



Contact the WPS Team to discuss your requirements.





(4525C)

SKU 4525C
